Jim Phillips - Billabong Art of Shaping ASR Sept 2009

"The inception of the design is pure Billy Hamilton, a Surfboards Hawaii Stylist I, the original surfer that Skip Fry wanted to be. I've had this concept in mind for a long time, but had never brought it to fruition.

A 9'9" US Blanks foam core was my starting place. When I received notice that I was being considered for the Billabong event, the idea came to the surface once again - I sketched it out roughly and then started seriously plotting it out.

The decision to actually put saw to foam was the first obstacle, but as my Dearly departed father said to me many times, "The devil hates a coward.” The first few cuts were easy, but as I started to go "around the corner" this was where difficulty started to step into the picture. There was no easy way to use clamps on this layout.  I have 6,8 and 10 foot pipe clamps and by butting them against the tips of the already glued sticks, I could get a bite on the nearly straight outline.

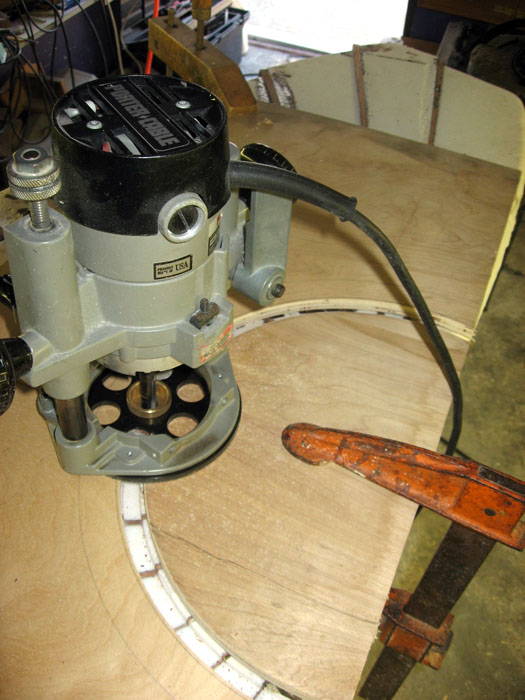

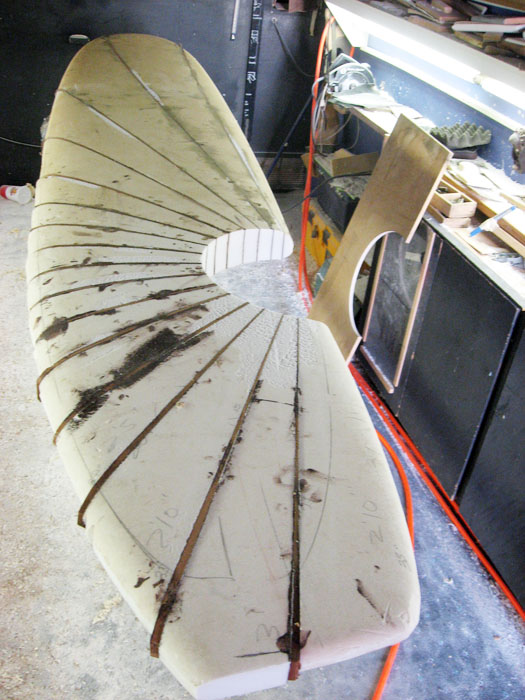

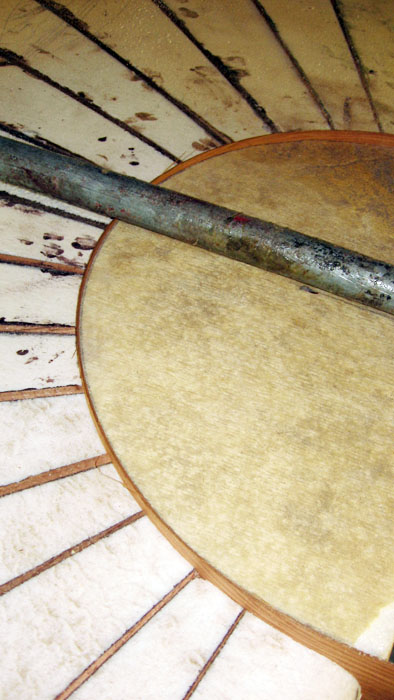

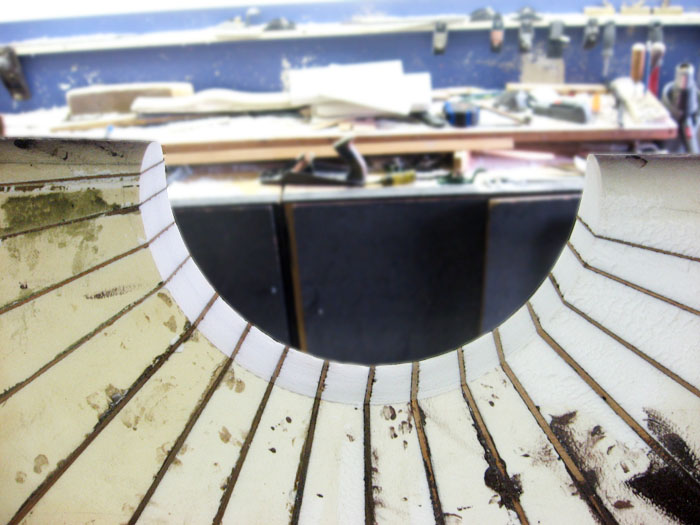

When all 17 stringers were in place, I next needed to install the "sun" which needed to be mechanically accurate so free handing it was out of the question. I have several professional big routers so I made a template to route the curve accurately into the blank. The replacement piece of foam needed to be a true arc, but 3/32 nds smaller in diameter to accommodate the redwood stick that would separate it, kind of like an annulus, from the rest of the design. This was accomplished but taking a piece of old Walker Foam and shaping it to the same curve and gluing it, along with the wood into the blank.

It was now time to lay the Stylist I template on the blank and put saw to foam and cutout the plan shape. With pencil on foam the circular saw was put into play and the planshape came to life.  With the outline cut I would normally clean the outline with the planer, but wood grain 90 degrees to the planer was a guaranteed blow out of the stringer ends.  Fortunately I have a carbide grit planer and used this to keep the outline clean and free of splintering.

Once it was time to get to work with the planer, the very nature of the design had its own problems; the stringer layout made the blank very flexy in the center and the amount of stringers as well as the varied angles was another concern for the blades.  The blank had to be balanced over my shaping stands in a particular way to help control the flex.  To control the stringer blow outs or splintering I used the regular planer with newly sharpened blades to rough out the board and then I pulled out the carbide grit planer again to do all the finish work.

After all the planer work was done, the block sanding went fairly fast for what it was - I had prepped it well and knew what was in store for myself heading into the final stretch.

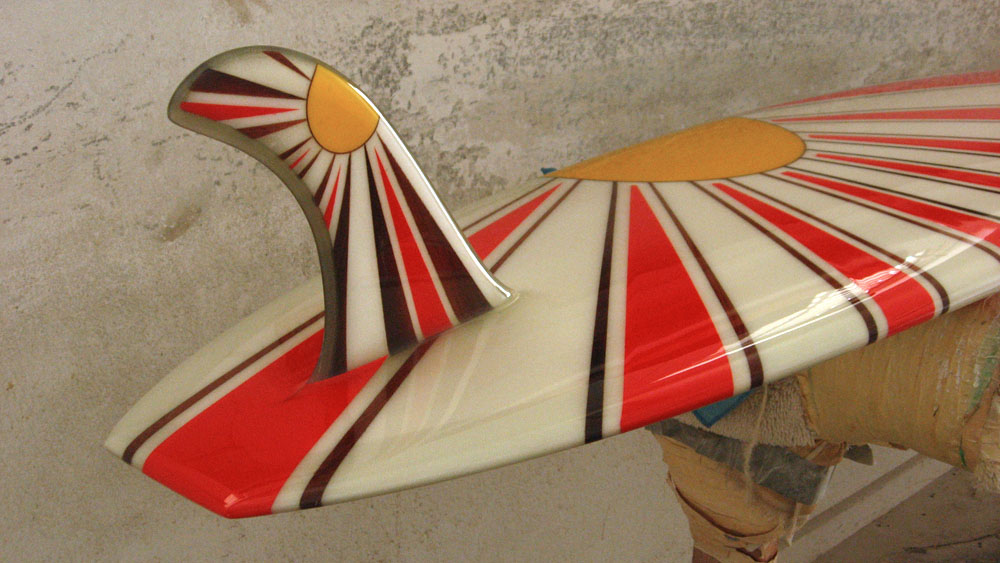

The fin followed the same design as the blank which I laid up with volan cloth, the same as the boards glassing, redwood, foam and pigment.  It was completed in 2 days...just in time.

This is not the Michael Angelo's Sistine Chapel, but nevertheless, a masterpiece by anyone’s expectations."

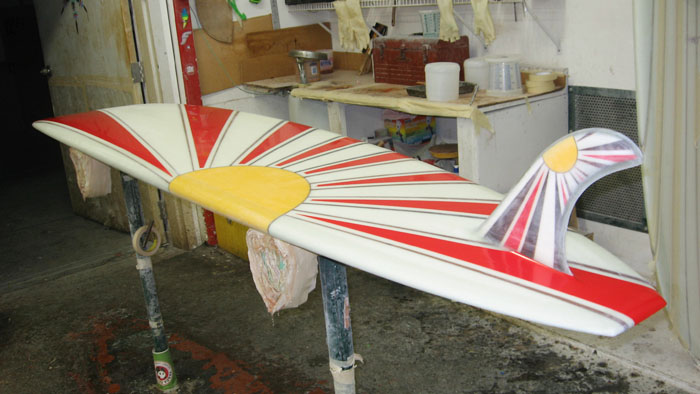

Concept. Glue up. Shape. Red Gloss Color. Fin. By Jim Phillips

Foam 9’9” by US Blanks.

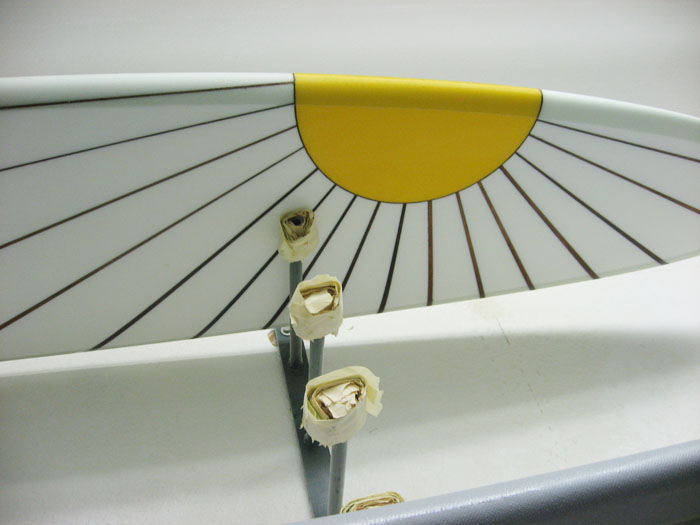

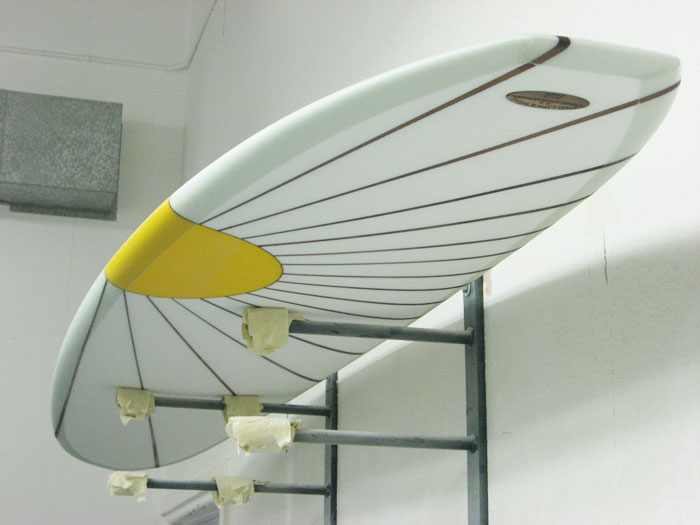

Airbrush sun color on foam by Sam Cody.
Fin lamination and gloss by Keith Swanson.
Volan lamination by Alex Villalobos
Gloss by Brian Johnson
Polished by Tracy Evans.

The wood is old growth redwood salvaged from a 20' tall wine cask that used to be in Napa. The wood was so soaked with red wine from over the years that milling the wood gave off a strong red wine aroma. This board would go great with a 2 lbs Kobe rib eye and head high waves.

All photos by Jim Phillips


Come on down to ASR this weekend at the San Diego Convention Center to see her up close...

Location: Encinitas, CA, USA
Joined: May 5 2008
Posts: 103
Points: 94

Re: [surfore] Jim Phillips - Billabong Art of Shaping ASR ...

Ahhh ... Holy Crap! That is just , well, stunning. I will be getting ahold of you to order a pig pretty quick Mr. Genius. Sir.

Joined: Mar 17 2004
Posts: 2356
Points: 828

Re: [surfore] Jim Phillips - Billabong Art of Shaping ASR ...

Speechless.

Resinhead

-Some people are like Slinkies- Not really good for anything but bring a smile to your face when pushed down stairs.

Location: Ocean Grove Victoria, Australia
Joined: Sep 17 2004
Posts: 1229
Points: 541

Re: [surfore] Jim Phillips - Billabong Art of Shaping ASR ...

Hey Jim thats pretty cool...

You'd be like me, in the "lets take it too far just because we can" camp...

Bet the rail with all the stringers coming out was a bitch to shape! I find three hard enough...But you like a challenge?

And I wonder if there's a performance possibility, with assymetrical flex...

Josh

www.joshdowlingshape.com

Location: Kaneohe, HI, USA
Joined: Mar 4 2005
Posts: 700
Points: 150

Re: [surfore] Jim Phillips - Billabong Art of Shaping ASR ...

Wow, This is something very special..  I think you just raised the creativity bar.  Thanks for epanding the possibilities!

D

Location: Indialantic, FL, USA
Joined: May 3 2007
Posts: 2628
Points: 1702

Re: [surfore] Jim Phillips - Billabong Art of Shaping ASR ...

Ridonkulous!!

I can't imagine what went into the glue-up. No wait, I can't imagine what went into the planer work. No wait, I can't imagine what went into the..... Oh never mind....

Joined: Aug 5 2009
Posts: 43
Points: 99

Re: [surfore] Jim Phillips - Billabong Art of Shaping ASR ...

That is beautiful. Nice work and keep up the creativity!!!

Joined: Mar 18 2004
Posts: 1586
Points: 776

Re: [surfore] Jim Phillips - Billabong Art of Shaping ASR ...

um....wow.  extra wow.  wow squared.  I doubt anyone but Jim could have pulled this off.

Joined: Sep 20 2008
Posts: 509
Points: 581

Re: [surfore] Jim Phillips - Billabong Art of Shaping ASR ...

AWSOME!!!

You're not going to wax and ride it are you?  Send that beauty to the museum!!!

Joined: Jun 23 2004
Posts: 58
Points: 82

Re: [surfore] Jim Phillips - Billabong Art of Shaping ASR ...

Jim....Thank you. That board is a true gift. It is simply the most extraordinary piece of craftmanship I have ever seen. I don't believe anyone, ever, would have even attempted such an outrageous design concept, let alone actually execute it with such precision. Your "Rising Sun" board has affected me profoundly. To me, it is the embodiment of everything you represent as the Master Shaper. I will never approach your level of craftmanship, but I can and will try harder to emulate your work ethic, and do the best job I can.

TP - "Wish I was shaping right now instead of just talking about it..."
www.tp4surf.com

Joined: Mar 18 2004
Posts: 1009
Points: 229

Re: [surfore] Jim Phillips - Billabong Art of Shaping ASR ...

Jeese JKP that is unreal!!! Chris Green would be proud. Not even bumpy. I see it as a tribute to your old man..... who used to shake his head in wonderment at our wild schemes. Brookah
